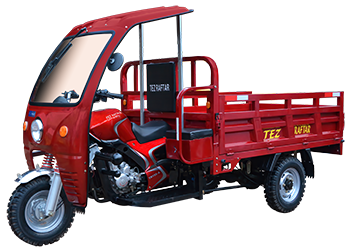

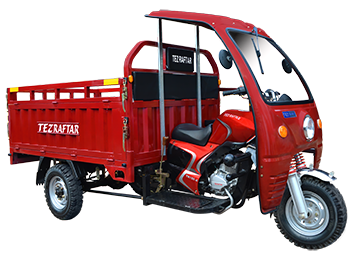

150cc MOTORCYCLE CARGO LOADER - PAKSTAR AUTOMOBILE (PVT.) LTD.





 TECHNICAL SPECIFICATIONS

Engine & Performance Parameters

Engine Type 4-Stroke, Spark-Ignition, Single Cylinder, Air-Cooled with Cooling Fan
Piston Displacement 150cc
Bore x Stroke 62x49.5mm
Max. Power 8.2 kw / 8000 RPM
Max. Torque 10Nm / 7500 RPM
Compression Ratio 9.2:1
Starting Method Electric Start & Kick Start
Clutch Type / Method Manual / Wet Multidisc (7-plates)
Lubrication Method Pressure and Splash
Lubricant Capacity 1400ml (Max.)
Gear Shift Method Constant Mesh, Two-stage Transmission, 6-Speed Gearshift (5-Forward + 1-Reverse Gear)

Suspension

Front Heavy Duty 2 Shock Absorbers, 2 Spring Cushion
Rear 2 Leaf Springs, 2 Spring Cushion

Brakes

Front Brake Mechanical (Drum Type)
Rear Brake Hydraulic (Disk Type)

Tyres

Size 500-12 : 12 PR
Type Tube Type Rubber Tyres

Fuel

Fuel Type Gasoline (Petrol)
Gasoline Fuel Tank Capacity 22 Liters
Fuel Consumption - Gasoline 20 Km / Liter

Electricals

Battery 9Ah, 12V

Vehicle

Frame Type Fabricated / Rectangular Steel Pipe
Roof Rack Not Included
Unladen Weight 430 kg
Load Bearing Capacity 800kg
Wheel Base 2360 mm (92.9 inches)
Wheel Track 1140 mm (44.88 inches)
Overall Length 3510 mm (138.0 inches)
Overall Width 1340 mm (52.75 inches)
Overall Height 1535 mm (60.4 inches)
Cargo Cabin 2060 mm x 1321 mm x 500 mm
Turning Circle 6700 mm (263.7 inches)
Gradeability 22-23%
